Effective Cyclone Dust Collectors for Improved Air Quality

In industrial settings, clean air is more than a regulatory requirement—it's a cornerstone of worker health, equipment longevity, and operational efficiency. One of the most practical and durable tools for managing airborne contaminants is the cyclone dust collector.

1. Understanding Cyclone Dust Collector Technology

Cyclone dust collectors, also known as cyclone separators, are mechanical devices that remove particulates from air, gas, or liquid streams without the use of filters. Their design relies on centrifugal force to separate dust and debris.

How it works:

  • Dust-laden air enters the cyclone tangentially at high speed.

  • The air stream spirals downward in a vortex inside a conical chamber.

  • Heavier dust particles are thrown outward by centrifugal force and fall into a collection bin.

  • Clean air spirals upward through the center and exits the top of the cyclone.

Main components include:

  • Inlet duct

  • Cylindrical body and conical section

  • Dust discharge hopper

  • Clean air outlet

Cyclones come in various configurations:

  • Single cyclone: Common in smaller setups or when processing large, coarse particles.

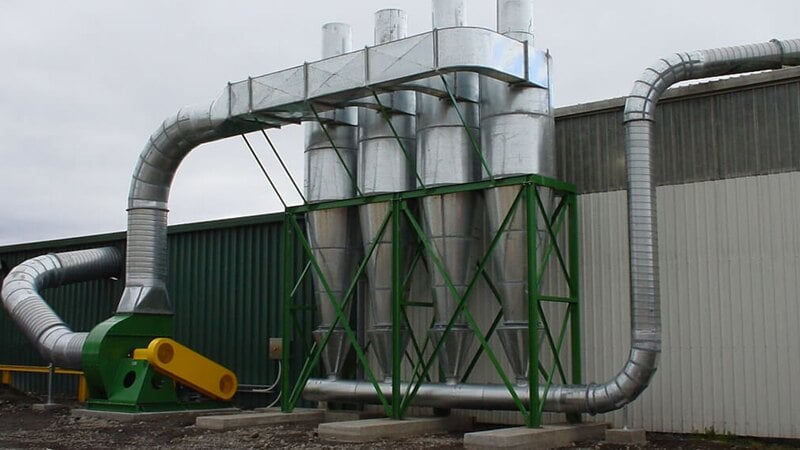

  • Multi-cyclone systems: Combine several small cyclones in parallel for improved efficiency, especially in high-volume or fine-particle applications.

Cyclones are often used as the first stage in multi-tiered filtration systems, followed by baghouses or HEPA filters.

2. The Air Quality Challenge in Industrial Facilities

Industrial processes frequently release airborne dust and particulate matter (PM), which pose serious challenges:

  • Health hazards: Inhalation of particles such as silica, metal dust, or grain dust can lead to conditions like silicosis, asthma, or chronic bronchitis.

  • Fire and explosion risks: Combustible dust can ignite, leading to catastrophic explosions.

  • Regulatory compliance: Agencies like OSHA and the EPA impose strict air quality limits.

  • Equipment degradation: Dust accumulation damages electronics, machinery, and HVAC systems.

Cyclone dust collectors address these issues by removing large dust particles before they disperse, improving both workplace safety and environmental compliance.

Table 1: Common Sources of Dust and Cyclone Application Suitability

Industry/Process Dust Type Cyclone Suitability
Woodworking Sawdust, fine particles Very effective
Metal fabrication Welding fumes, shavings Pre-filter for fine dust
Food processing Grain dust, sugar Effective for dry dust
Cement/Concrete plants Silica, mineral dust Highly suitable

3. Advantages of Cyclone Dust Collectors

Cyclone systems offer multiple advantages that make them appealing across industries:

High Particulate Separation Efficiency

  • Efficient at removing large and medium-sized particles (typically >10 microns).

  • Captures up to 99% of coarse dust with proper airflow design.

Low Maintenance

  • No moving parts or filters to replace.

  • Minimal wear and tear, reducing downtime and servicing costs.

Cost-Effective Operation

  • Lower capital investment and operational cost compared to filter-based systems.

  • Energy-efficient, especially when paired with variable-speed fans.

Durability and Temperature Resistance

  • Suitable for high-temperature environments (e.g., foundries, kilns).

  • Can handle abrasive particles like silica, sand, or metal flakes.

Environmentally Friendly

  • Reduces fugitive emissions.

  • Collected dust can be recycled or safely disposed of.

  • No water required (unlike scrubbers), conserving resources.

These benefits make cyclone dust collectors an excellent primary solution or pre-treatment stage for more advanced filtration systems.

4. Performance Factors and Design Considerations

The efficiency of a cyclone dust collector depends on several design and operational factors:

Inlet Velocity

  • Higher inlet speeds increase centrifugal force, improving dust separation.

  • However, excessive velocity can cause re-entrainment or erosion.

Cyclone Shape and Dimensions

  • Longer cones improve efficiency by increasing particle residence time.

  • A well-proportioned inlet and outlet reduce turbulence and energy loss.

Airflow and Pressure Drop

  • Optimal pressure drop ranges between 2–6 inches of water gauge.

  • Too low = poor separation; too high = wasted energy.

Dust Characteristics

  • Works best for dry, heavy, and non-cohesive dust.

  • Fine or sticky dust may require supplemental filtration (e.g., baghouses).

Multi-Cyclone Systems

  • Multiple small cyclones in parallel offer higher surface area and are more effective for finer dust.

  • Often used in power plants, cement mills, and steel processing facilities.

Table 2: Comparison of Cyclone vs Other Dust Collection Methods

Method Particle Size Removal Maintenance Cost Best For
Cyclone Collector >10 microns Low Low Pre-filtration, coarse dust
Baghouse Filter <1 micron Moderate Moderate–High Fine particles, dry dust
Cartridge Filter <0.3 micron High High Welding, powder coating
Wet Scrubber <1 micron High High Sticky or explosive dust

5. Applications in Real-World Settings

Cyclone dust collectors are employed across a wide variety of industries:

Woodworking and Sawmills

  • Cyclones remove sawdust and chips from cutting, sanding, and planing operations.

  • Help maintain clean, safe workshops with minimal fire hazard.

Foundries and Metalworking

  • Handle hot, abrasive metal particles and shavings.

  • Often installed as pre-cleaners to extend the life of expensive HEPA or bag filters.

Food and Grain Processing

  • Capture flour, sugar, and grain dust from conveyors and sifting machines.

  • Ensure compliance with food safety and air quality regulations.

Cement and Mining

  • Process large volumes of mineral dust at crushing, grinding, and transport points.

  • Integrated with dust bins for bulk material recovery and reuse.

Cyclone systems also see increasing use in plastic recycling, textile manufacturing, and biomass power plants.

6. Maintenance, Installation, and Operational Best Practices

While cyclone dust collectors are low-maintenance, good practices ensure longevity and performance:

Installation Tips

  • Place as close to dust generation points as possible.

  • Use sealed ductwork to avoid leaks and air pressure drops.

  • Ensure vertical alignment for proper dust settling.

Maintenance Best Practices

  • Check dust bins regularly to prevent overfilling and system backup.

  • Inspect for wear on cone and inlet areas, especially with abrasive dust.

  • Monitor airflow and static pressure for efficiency drops.

  • Clean and balance impellers/fans as part of routine maintenance.

Sizing and Airflow Matching

  • Match the cyclone's capacity (measured in CFM—cubic feet per minute) with your dust volume.

  • Undersized systems underperform; oversized units waste energy.

Proper installation and monitoring ensure a system lifespan of 10–20 years or more.

FAQ Section

1. Are cyclone dust collectors suitable for fine dust like silica?
They are highly effective for larger particles. For fine silica, cyclones serve best as a pre-filter, followed by a HEPA or baghouse filter.

2. How often should the dust bin be emptied?
This depends on the dust load but should be checked daily to weekly to prevent overflows and blockages.

3. Can cyclone collectors be used indoors?
Yes, but they must be vented properly to avoid noise, vibration, and reintroducing dust into the indoor air.

4. What CFM is needed for my facility?
This depends on the number and type of dust sources. A professional assessment is recommended, but typical woodworking setups range from 500–5,000 CFM.

5. How do I know if my cyclone is properly sized?
Signs of improper sizing include dust escaping the outlet, low suction at the source, or high energy consumption. An airflow and particle test can confirm fit.

Conclusion

Cyclone dust collectors offer a reliable, economical, and efficient means of improving air quality in industrial environments. Their simplicity, durability, and adaptability make them ideal for controlling coarse dust across numerous sectors. While not a complete solution for ultrafine particles, when combined with baghouses or filters, cyclone systems form the foundation of a comprehensive dust management strategy. For businesses focused on safety, compliance, and sustainability, integrating cyclone dust collectors is a smart and scalable move.
